IPC324LR3-VSPF40-D

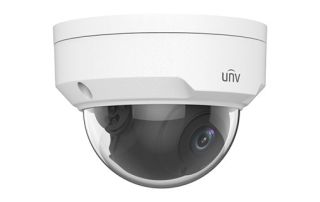

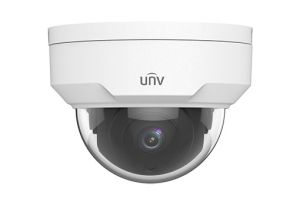

4MP Vandal-resistant Network IR Fixed Dome Camera
Product Details
| IPC324LR3-VSPF28-D | IPC324LR3-VSPF40-D | |||||
| Camera | ||||||
| Sensor | 1/3″, progressive scan, 4.0 megapixel, CMOS | |||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | ||
| 4 | 90 | 36 | 18 | 9 | ||
| Angle of View (H) | 104.4° | 78.9° | ||||
| Angle of View (V) | 54.4° | 39.6° | ||||
| Angle of View (O) | 135.7° | 97.0° | ||||
| Adjustment angle | Pan 0° ~ 360° | Tilt: 0° ~ 75° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour: 0.03Lux (F2.0, AGC ON) | |||||
| 0Lux with IR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >52dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | DWDR | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile | |||||
| Frame Rate | Main Stream: 4MP (2592*1520), Max 20fps; | |||||
| Sub Stream: 720P (1280*720), Max 20fps; | ||||||
| Third Stream: D1 (720*576), Max 20fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 2 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180° | |||||
| Dewarping | NA | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | |||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | |||||
| Client | EZStation | |||||
| EZView | ||||||
| EZLive | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||
| Interface | ||||||
| Network | 1 RJ45 100M Base-TX Ethernet | |||||
| Certifications | ||||||
| Certifications | CE: EN 60950-1 | |||||
| UL: UL60950-1 | ||||||
| FCC: FCC Part 15 | ||||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 4W | ||||||
| Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) | |||||
| Net Weight | 0.45kg (0.99lb) | |||||
| Material | Metal + Plastic | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 2KV | |||||
| Ingress Protection | IP67 | |||||
| Vandal Resistant | IK10 | |||||
Features
| Optics |
| Day/night functionality |
| Smart IR, up to 30 m (98 ft) IR distance |
| 2D/3D DNR (Digital Noise Reduction) |
| Compression |
| Ultra 265,H.265, H.264, MJPEG |
| Triple streams |
| ROI (Region of Interest) |
| Network |
| ONVIF Conformance |
| Structure |
| Wide temperature range: -30°C to 60°C (-22°F to 140°F) |
| Wide voltage range of ±25% |
| IK10 vandal resistant |
| IP67 |
| 2-Axis |
