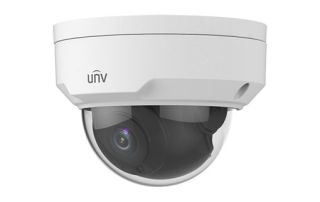

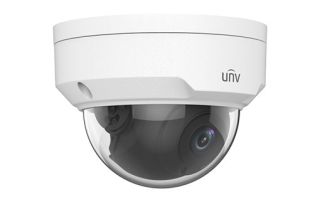

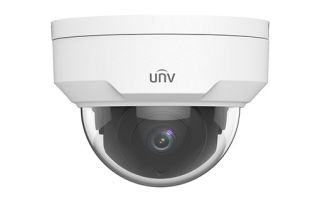

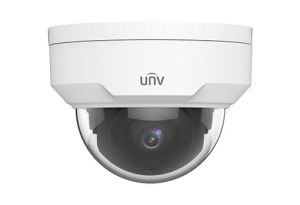

IPC322LB-SF28-A
2MP Vandal-resistant Network IR Fixed Dome Camera
• High quality image with 2MP, 1/2.8″CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264
• Smart IR, up to 30m (98ft) IR distance
• Day/night functionality
• 2D/3D DNR (Digital Noise Reduction)
• IP67 protection
• IK10 vandal resistant
• Support PoE power supply
• 2-Axis
Product Details
| IPC322LB-SF28-A | IPC322LB-SF40-A | ||||
| Camera | |||||
| Sensor | 1/2.8″, progressive scan, 2.0 megapixel, CMOS | ||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | |||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 43.4 | 17.4 | 8.7 | 4.3 | |
| 4 | 62.1 | 24.8 | 12.4 | 6.2 | |
| Angle of View (H) | 106.7° | 87.5° | |||
| Angle of View (V) | 57.1° | 46.3° | |||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 75° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.01Lux ( F2.0, AGC ON) | ||||
| 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | DWDR | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264 | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps | ||||
| Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP | ||||
| Compatible Integration | API | ||||
| Client | EZStation | ||||
| EZView | |||||
| EZLive | |||||
| Web Browser | Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | ||||
| Interface | |||||
| Network | 10/100M Base-TX Ethernet | ||||
| Certifications | |||||
| Certifications | CE: EN 60950-1 | ||||
| UL: UL60950-1 | |||||
| FCC: FCC Part 15 | |||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 5.0W | |||||
| Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) | ||||
| Net Weight | 0.35kg (0.77lb) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistant | IK10 | ||||
| Reset Button | N/A | ||||
Features
• High quality image with 2MP, 1/2.8″CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264
• Smart IR, up to 30m (98ft) IR distance
• Day/night functionality
• 2D/3D DNR (Digital Noise Reduction)
• IP67 protection
• IK10 vandal resistant
• Support PoE power supply
• 2-Axis
• IP67 protection
• IK10 vandal resistant
• Support PoE power supply
• 2-Axis
